Fitness Premium Gym Flooring XT "Anthracite"
- /
-
Ready to ship
in approx. 3-4 weeks – production yet to start - €71.90 / 4.76 Piece / m²
- (5.16 kg / Piece)
EAN: 4251469369610 | Item no.: 6961
Fitness Premium Gym Flooring Type XT consists of precision-cut fitness tiles made from rubber granules bonded with polyurethane. There is only a tight joint between the tiles, so the finished floor looks as if it has been poured. Particular attention has been paid to good elasticity. The resilient flooring feels comfortable underfoot and absorbs impacts. Its surface is slip-resistant. The tiles are also suitable for outdoor training areas because they are frost-resistant and allow rain to pass through. Functional tiles can be placed beneath the flooring to create a multi-layer system.
What types of training is the flooring suitable for?
This rubber gym flooring is primarily suited to sports and forms of training where good shock absorption matters, such as martial arts, calisthenics or operational training for police and military personnel. When training in a home gym, at a fitness studio or outdoors, the resilient flooring cushions landings after jumps. The granular surface is slip-resistant. The flooring reduces noise from footsteps, landings and weights being set down, and can prevent it in some cases.
What are the tiles made from?
The tiles consist throughout of recycled tyre rubber granules (ELT). The PU binder is colourless. Anthracite is therefore the natural colour of the granules. Gym equipment and weight benches do not leave permanent indentations during normal use. The screed, tiles or parquet beneath remain protected. Outdoors, sunlight can make the colour somewhat lighter over time. Freshly unpacked tiles sometimes smell of rubber, but with good ventilation the smell soon fades.
How are the fitness tiles laid?
The tiles are simply laid in place without drilling, gluing or screwing. The substrate, such as screed, concrete, tiles or parquet, must be stable, largely level and able to support the load over the long term. The tiles can also be laid over underfloor heating. The optimised jigsaw interlock joins the tiles and prevents the edges from lifting. Outdoors, unpaved ground should be stabilised using plastic ground reinforcement grids filled with gravel. Edge tiles are cut with a jigsaw or circular saw. On request and for an additional charge, WARCO can supply the tiles cut to size and ready to lay.
How easy is the flooring to clean indoors and outdoors?
Indoors, a vacuum cleaner, broom or mop is enough for routine cleaning. For damp mopping, use warm water and a neutral cleaner. For hygienic cleaning, the tiles can also be wiped with alcohol-based disinfectants. Outdoors, rainwater flushes fine dirt through the tiles. On a non-porous substrate, the water drains away beneath the tiles, following the gradient. This prevents water from pooling. Frost does not damage the tiles.
What makes the flooring a system?
Functional tiles (Type XX) can be placed beneath the fitness tiles, and several layers can be stacked. They are available in two thicknesses and three densities. A lower density provides greater shock absorption. A higher density supports more weight and suits areas where weights are dropped. This gives each training zone the build-up it needs. For heavy weights, the thicker version of the fitness tiles is also recommended.
Discount
Product Highlights
Characteristics
Product Details – Material and Structure
Comparative values
Rubber mats made from PU-bound rubber granules can have a characteristic rubber smell, particularly when new. Whether and how strongly it is noticed depends on the material composition and on individual sensitivity to odours.
With WARCO rubber coverings, the inherent smell decreases over time. On well-ventilated outdoor areas such as balconies and terraces, it dissipates quickly. Heat may temporarily make the smell more noticeable.
The smell can remain noticeable for longer in indoor areas, conservatories and other poorly ventilated spaces where ventilation is limited. To reduce the initial inherent smell, rubber tiles may be stored for several days before installation in a dry, well-ventilated place. During storage, air should reach as many tile surfaces as possible.
After installation, regular brief periods of thorough ventilation or cross-ventilation support air exchange. With correct use, no adverse health effects from WARCO rubber coverings are known.

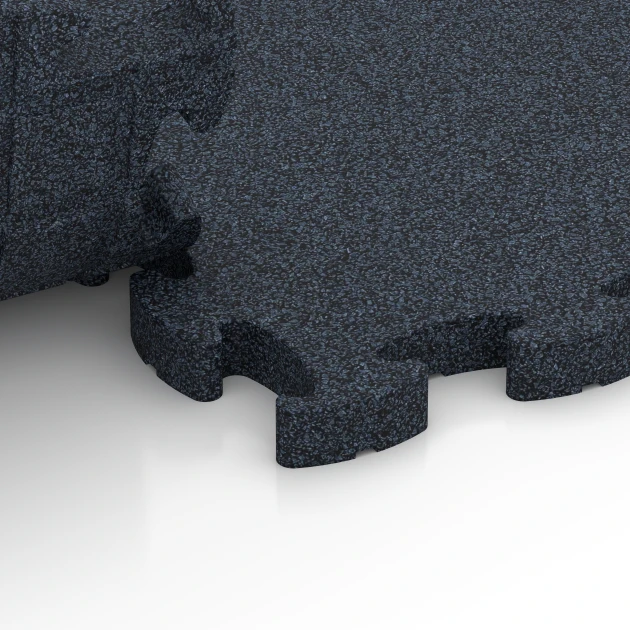

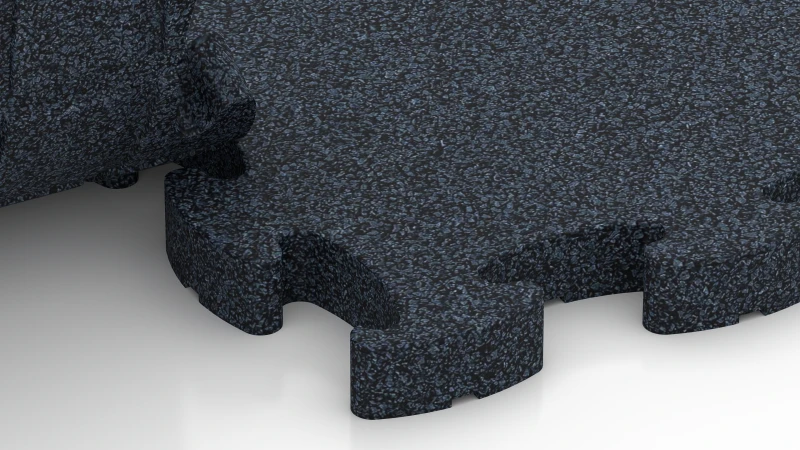

A calibrated puzzle interlock without a bevelled edge is produced by cutting each rubber tile precisely to size from a larger blank. The blank is left to cure for several days before cutting.

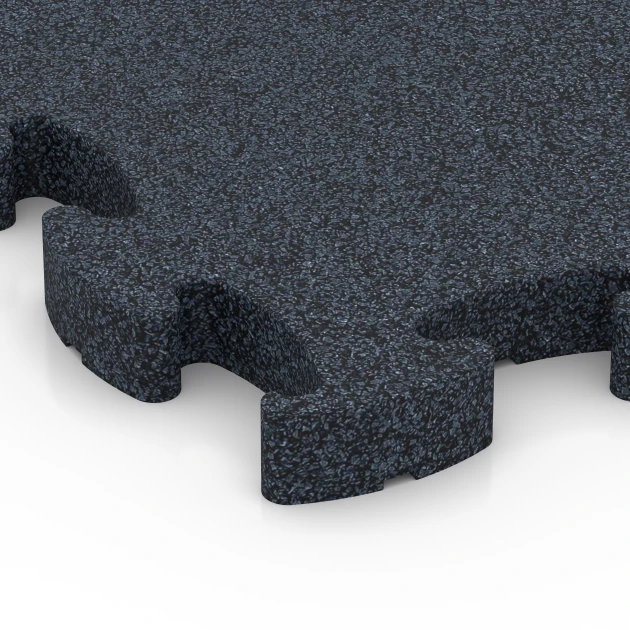

Without a bevelled edge means that the tile edges are vertical rather than chamfered. The finished tile has only a minimal height tolerance.
In the usual pressing process, a rubber tile receives a bevelled edge, causing each joint to appear as a dark line across the surface. With vertical edges and minimal height tolerance, the tiles butt together accurately, leaving only a hairline joint. This hairline joint is visible in the laid surface only on close inspection, so the floor covering appears almost seamless.
Impact-absorbing flooring made from PU-bound rubber granules reduces impact sound and the structure-borne sound it generates. The elastic floor covering absorbs impacts and reduces their transfer to the substrate.
Impact sound occurs when walking, jumping, moving furniture or setting down weights cause a floor or storey slab to vibrate. These vibrations travel through solid building components as structure-borne sound and can become audible as airborne sound in other rooms.
Structure-borne sound can also be caused by machinery and by installations fixed to the building. It may have causes and transmission paths other than impact sound, so it cannot be reduced by a floor covering alone.
Under load, a floor covering made from rubber granules deforms elastically. This deformation transfers the load to the substrate less abruptly, reduces the peak force and, through the covering’s internal damping, further weakens the remaining vibrations.
Sound-insulation tiles reduce excitation of the substrate from footsteps, jumps and impacting objects. Where higher requirements apply, multi-layer flooring systems with functional layers of differing elasticity can further reduce impact transmission. Their effectiveness depends on the properties of each layer, the load applied, and the existing floor or slab structure.
Rubber gym floor coverings made from rubber granules can be used for cardio, classes, equipment-based training, functional training, HYROX, boxing, gymnastics, free-weight training and strength training.
Their suitability depends on the thickness, elasticity and shock absorption being matched to the intended use. For cardio, classes and permanently installed training equipment, gym tiles at least 1 cm thick are suitable under normal use. For dynamic exercises, higher loads or greater requirements for elasticity and shock absorption, tiles at least 2 cm thick are recommended.
In functional training and HYROX, the covering is subjected to running, jumping, moving weights and sled exercises. For jumps and intensive contact with the surface, it must absorb shocks effectively while providing a stable training surface. Pulling and pushing sleds requires a firm, abrasion-resistant and durable surface.
For boxing and gymnastics, rubber gym floor coverings are available with elasticity and shock absorption matched to the respective movement patterns. Under permanently installed strength equipment, compressive strength, slip resistance and stable support are the main considerations.
In free-weight areas, thicker tiles or multilayer systems are required. These cushion the impact of weights being set down or dropped, distribute loads, reduce peak loads and limit the transfer of vibrations.
Multilayer systems combine different properties within a single floor covering. A dense top layer provides a firm, abrasion-resistant training surface, while a more elastic, shock-absorbing layer beneath it improves impact and vibration absorption. Density, rubber granule particle size, compaction and shock absorption are selected for each layer according to its function.
Within a comparable construction, a thicker tile allows greater deformation, resulting in greater shock absorption. There is no single gym floor covering for every application: single-layer and multilayer systems can be matched to the type of training, equipment and weights, potential drop heights, intensity of use and building conditions.
Gym equipment flooring made from PU-bound rubber granules is generally suitable for cardio equipment and HIIT areas.
The thickness and material strength of the gym flooring tiles must be matched to the type of training, the cardio equipment in use and the existing substrate. The elastic rubber flooring protects the substrate, cushions impact loads and can reduce the transmission of noise and vibration.
Under treadmills and spinning bikes, gym flooring tiles with a thickness of 10 mm or more are often suitable. HIIT creates higher impact and shear loads through jumping and rapid changes of direction, so thicker gym flooring tiles are appropriate for HIIT training areas. These tiles must also be sufficiently dimensionally stable to provide a stable stance. A slip-resistant surface helps maintain traction during rapid movements.
Calibrated gym flooring tiles with a cut puzzle interlock can be joined to form a level, close-fitting training surface. The interlock stabilises the tile assembly and allows individual gym flooring tiles to be replaced.
Whether the gym flooring can be loose laid depends on the manufacturer’s instructions. The manufacturer’s instructions also determine whether alcohol-based cleaning or disinfecting products may be used.
A basement can be used as a gym if it is dry and can be adequately ventilated.
Before conversion, damp patches, salt efflorescence, flaking plaster or mould should be investigated from a building physics perspective rather than relying on ventilation. Depending on the findings, the cause may be defective external waterproofing, a leaking pipe or condensation on cold surfaces. The measures required depend on those findings.
Drying through ventilation is only possible where the absolute humidity of the outdoor air is lower than that of the basement air. On warm, humid summer days, prolonged ventilation can increase moisture levels in the basement. Humidity-controlled ventilation or a dehumidifier can stabilise the indoor climate.
The required room height depends on the exercises and equipment planned. It must accommodate the height of the equipment, the maximum height reached during exercise and the necessary safety clearance to the ceiling. Equipment should be planned with the movement and safety areas specified by its manufacturer.
Before installing a rack, a heavy weight set or several strength machines, the basement floor should be checked for its capacity to carry the total load and the concentrated loads at machine feet or weight-storage racks.
Flooring should be selected for the actual level of use. Under cardio equipment, flooring made from 1 cm-thick gym mats is generally sufficient for vibration damping. Free-weight areas require thicker, shock-absorbing gym flooring: at least 2.5 cm, preferably 4 cm.
Where weights are dropped, the complete floor build-up must be designed to withstand the resulting impacts and vibration and to provide the necessary sound insulation.
A home gym needs a specialist gym floor covering designed for point loads and dynamic loads from training equipment, free weights, jumps and other movement-intensive exercises.
For these loads, a gym floor covering made from PU-bound rubber granules is slip-resistant, protects the substrate, absorbs part of the impact energy and reduces impacts and vibrations.
For effective basic cushioning, the gym floor covering should be at least 10 mm thick. The greater the equipment weight, impact load or potential drop height of weights, the higher-performing the gym floor covering must be. Damping cannot be determined from covering thickness alone: the relevant factors are the performance values of the specific gym floor covering, such as force reduction and impact sound reduction. Density and granule fraction are particularly significant for these performance values.
Where weights are dropped, the gym floor covering must be matched to their weight and drop height. Construction protection mats and comparable makeshift measures are not designed for use as gym floor coverings.
Slip-resistant fitness tiles made from PU-bound rubber granules can be used as flooring beneath gym equipment. The tiles attenuate impacts, reduce noise and structure-borne sound, and protect the floor from abrasion and pressure marks.
To protect the floor, the tiles must be installed on a firm, level substrate. All equipment feet must bear evenly and must not rest on a tile joint. Any unevenness must be levelled before installation.
For cardio equipment, fitness tiles with a thickness of about 1 cm or more are used. Heavy strength stations, racks and weight benches require thicker tiles.
For small or narrow equipment feet, an additional metal plate spreads the point load across a larger area.
For dropped weights, a simple equipment mat is not sufficient. The low-frequency vibrations created by dropped weights require a thicker or multi-layered flooring system for the training area.
The cost of setting up a home gym, also known as a home fitness room, ranges from around €500 to €15,000 (about £425 to £13,000), depending on the fitness equipment, room size and fit-out.
Fitness equipment is usually the main cost driver, while room size and the extent of the fit-out also affect the budget.
A basic set-up with dumbbells, a weight bench and a pull-up bar costs considerably less than a training area with a rack, cable machine or cardio equipment. Delivery and installation costs often need to be added.
Second-hand fitness equipment can reduce initial purchase costs, provided that its condition, operation and transport are checked before purchase.
The flooring must also be included in the calculation. Slip-resistant fitness flooring made from PU-bound rubber granules dampens noise and vibrations and protects the substrate.
Flooring costs depend on the size of the training area, the thickness of the tiles and the preparation of the substrate. With suitable tile systems, the area can be extended later.
Before fitting rubber flooring indoors, the tiles should be cleaned, dried completely and aired. The substrate must be level, load-bearing, clean and dry.
New tiles made from rubber granules may carry residues of manufacturing release agents and fine rubber dust. Before installation, it is advisable to clean the tiles outdoors with warm water; a mildly acidic cleaner suitable for rubber and a scrubbing brush can assist with cleaning. A pressure washer may be used from a sufficient distance. The tiles must then dry completely.
If cleaning before installation is not possible, the residues can be removed after fitting by repeatedly damp-mopping with warm water. New tiles have a characteristic odour which decreases over time; airing them outdoors for several days and regularly ventilating the room during the first few weeks will help it dissipate more quickly.
Before installation, the tiles should have reached room temperature. The installation instructions for the relevant product and installation system must be followed.
Rubber flooring tiles can be installed directly over concrete, screed, asphalt or tiled floors as a loose-laid covering, without an additional sub-base.
With no additional sub-base required, the substrate must still be load-bearing, clean and sufficiently level. Remove loose material, oil and other contamination before laying. Larger irregularities, depressions and changes in level must be levelled out so that the tiles lie stably and do not create obtrusive edges.

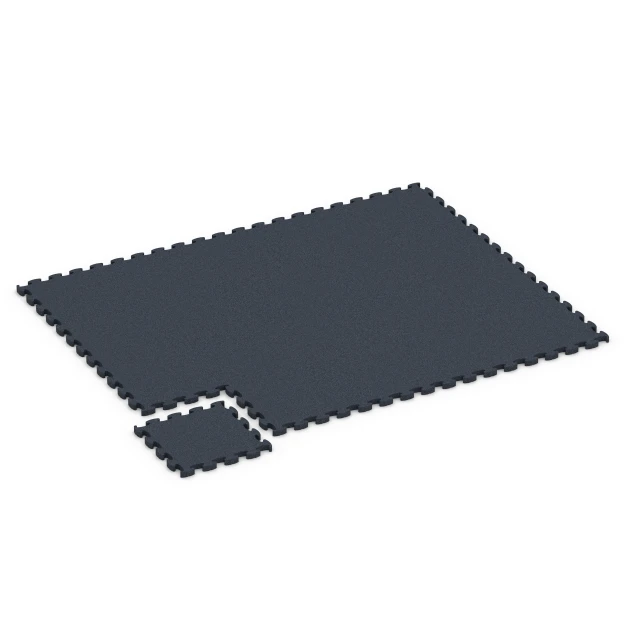

The starting point and laying direction depend on the shape of the area and the required pattern. In many cases, starting in the centre helps to align the pattern evenly and produce similar cuts at opposite edges. For other areas, a straight boundary may provide the appropriate starting point.
Lay the tiles according to the chosen layout and join them firmly. Depending on the product, this is done using puzzle joints, dovetail joints or separate connectors. Measure the edge tiles, cut them to fit and then insert them.
Bonding is generally not required. Small cut pieces, stair treads and very small areas may require bonding.
The appropriate cleaning method for rubber tiles within buildings depends on the area in which they are used and the surface texture.
In private homes, rubber brooms, vacuum cleaners or mops are usually sufficient for regular maintenance. A neutral cleaner suitable for rubber should be used. A mildly acidic cleaner may be used for mineral deposits.
Water-permeable rubber floor coverings must not be flooded where the substrate does not provide suitable drainage.
For larger or commercial areas, a scrubber dryer with a cylindrical brush is recommended. The brush type and contact pressure of the scrubber dryer must be matched to the floor covering.
Within buildings, a pressure washer is only suitable for stables or appropriately equipped halls where adequate drainage is available. It can also remove stubborn dirt from the textured tile surface.
