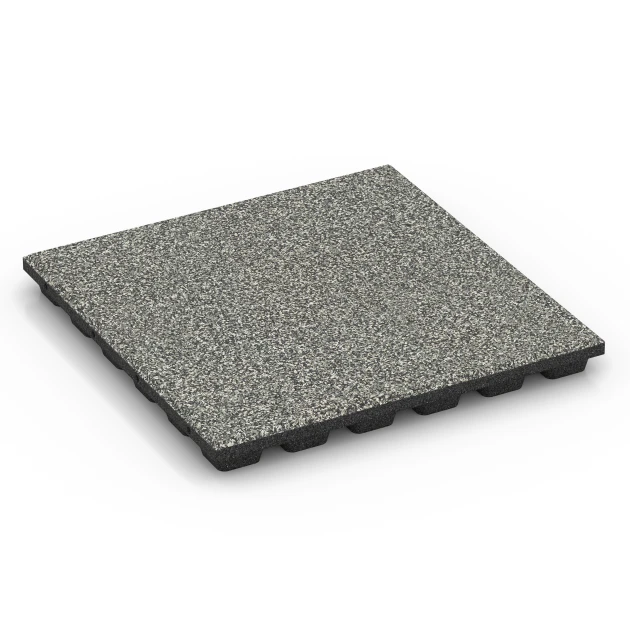

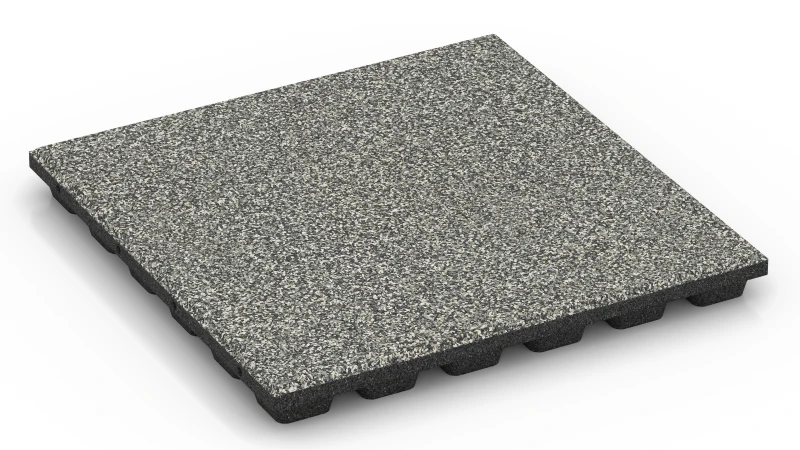

EPDM Playground Safety Tile – 160 cm FP "Grey granite"

€24.10 / Piece
  • plus shipping costs

    /
  • Ready to ship

    in approx. 7-14 days – production already under way
  • €96.40 / 4 Piece / m²
  • (6.80 kg /  Piece)

EAN: 4251469364325 | Item no.: 6432

The EPDM Playground Safety Tile measures 50 × 50 × 4.8 cm and is tested to BS EN 1177 for a critical fall height of up to 1.60 m. It has two layers. The wearing layer is about 3.5 mm thick and made from newly manufactured EPDM. This through-coloured material is colourfast, pleasant to the touch and suitable even for prolonged skin contact. The surface is grippy. Beneath it is a shock-absorbing base layer made from end-of-life tyre granules bonded with polyurethane. It cushions the impact of a fall. Plastic push-fit connectors are supplied with the tiles. They connect adjacent rows of tiles. The EPDM Playground Safety Tile is laid on a bound base or on a load-bearing layer of plastic honeycomb grid filled with chippings.

What play equipment is the tile suitable for?

The EPDM Playground Safety Tile is suitable for play equipment with a greater free height of fall. Examples include swings, climbing frames, multi-play units with higher platforms and slide towers in playgrounds and school grounds. The tiles are also used in indoor play areas and beneath the pull-up bars and horizontal bars in a calisthenics park. The tested critical fall height of 1.60 m must be at least as high as the free height of fall of the particular item of equipment. This value is usually given in the equipment manufacturer’s documentation.

How are the tiles laid?

The playground safety tiles are laid in half bond, like bricks in a wall. Each row is offset from the next by half a tile width. Every tile has holes for the push-fit connectors in two opposite edges. The connectors fit into these holes and join each tile to the two adjacent tiles in the neighbouring row. This stops the rows moving sideways. An edge restraint is needed to stop the tiles shifting along the line of the push-fit connectors. The edge restraint is not needed if the tiled area sits flush within a lawn or an area of paving, concrete or asphalt. Alternatively, the push-fit connectors can be glued in place. The tiles can be cut with a circular saw or jigsaw.

What base do the tiles need?

The EPDM Playground Safety Tile can be laid on concrete, asphalt or block paving. On natural or made ground, a load-bearing layer of plastic honeycomb grid filled with chippings must first be installed. Laying the tiles on a laying course of chippings is not recommended. Every base must remain stable and reasonably level over time. Water passes readily through the tiles. Drainage channels are moulded into the underside of each tile. On concrete or asphalt, water drains beneath the tiles and follows the slope. On the plastic honeycomb grid, it soaks into the ground below.

How much upkeep does the surface need?

Playground safety tiles need very little upkeep compared with loose-fill safety surfacing made from sand, gravel or wood. Loose material becomes dirty, gradually compacts during play and is carried out of the area. It therefore needs to be cleaned, loosened and topped up regularly. Playground safety tiles, by contrast, are easy to look after. Sweep away leaves and sand with a broom. Remove stubborn dirt with a pressure washer.

Selected variant 50 x 50 x 4,8 cm | 0,25 m²
Product type FP (plastic connectors to plug in or glue | slightly bevelled edges | underside with drainage structure)
Price and discount
0 m²

Product Highlights

Characteristics

Critical fall height 160 cm (BS EN 1177)

Impact attenuating playground surfacing – certified safety surfacing for private and public play areas.

Colour-stable and UV-resistant

EPDM granule surface, colour-stable and resistant to UV radiation over time.

Harmful substance limits met

Meets EU limits for harmful substances. Initial rubber odour diminishes.

Indoor and outdoor use

Frost-resistant, suitable for indoor and outdoor use.

Product Details – Material and Structure

Comparative values

How do I calculate the critical fall height on a playground?

The critical fall height of shock-absorbing playground surfacing is determined by a series of drop tests in accordance with BS EN 1177, not by a critical fall height calculator. A test headform fitted with an accelerometer is dropped from several heights onto points on the surfacing chosen in accordance with the standard. The critical fall height is the lowest drop height at which the impact produces a HIC value of 1000 or a peak acceleration (gmax) of 200 g. The least favourable test point determines the result.

That figure applies only to the surfacing construction tested under the conditions of the test. The test report therefore records the surfacing thickness, the substrate beneath it and the test conditions relevant to the result. On-site testing confirms whether the installed surfacing provides that level of shock absorption: the headform is dropped from a specified height at designated test points, and the readings are checked against the HIC and gmax limits.

How is the critical fall height determined in accordance with BS EN 1177?

The critical fall height is determined to BS EN 1177 in two procedures, one conducted in the laboratory and one carried out on site. The laboratory procedure establishes that value for a surfacing system. The on-site procedure checks at selected locations whether an installed area covers the free fall height of the equipment present. Test specimens with a combined area of at least one square metre are placed on a level, rigid concrete base. Loose-fill surfacing, such as impact-absorbing sand, gravel and woodchips, is installed at its intended depth. Safety tiles are laid so that the joints between tiles are included in the test.

Laboratory impact testing uses a hemispherical 4.6 kg test head, approximately 16 cm in diameter, fitted with an accelerometer, dropped from different heights onto the surfacing. For safety tiles, at least nine drops from at least four heights are made at separate locations 25 cm apart. For loose-fill surfacing, three impacts at each height are made on the same location. Testing is performed at 23 degrees Celsius, with a permitted variation of up to five degrees.

Laboratory results are assessed against the HIC value, which is the head injury criterion, and peak acceleration gmax. The critical fall height is the height at which either HIC 1000 or gmax 200 g is reached, with the lower value governing. It is established by interpolation of the measurement series. The test report gives the critical fall height in metres to two decimal places and states the test laboratory's measurement uncertainty. The result applies only to the tested construction, including tile type, thickness and connection, or, for multilayer systems, the complete layer sequence. The test substrate is the rigid laboratory base, not the site-built construction.

On-site testing verifies whether an installed impact-absorbing playground surfacing covers the free fall height of the equipment present. The test fall height must be at least the free fall height specified for the item of playground equipment under BS EN 1176. Measurements are taken at the least favourable locations, such as areas where the surfacing is worn or where its depth is lowest, and at further representative locations. The number of test locations depends on the size of the impact area, for which the standard specifies a minimum number. This procedure applies only to the locations tested and does not establish a critical fall height.

How thick should playground safety mats and playground safety tiles be?

The thickness of playground safety mats and playground safety tiles must be selected according to their tested critical fall height, which must at least match the free fall height of the playground equipment. The greater the potential fall height, the thicker the mats or tiles need to be.

Thickness alone does not indicate the fall height a product can accommodate. Construction, density and elasticity also affect shock absorption.

As a broad guide for free fall height, the following thicknesses apply: - Up to 100 cm: 3 cm - Up to 150 cm: 5 cm - Up to 200 cm: 7 cm - Up to 300 cm: 10 cm

For shock absorption, the decisive value is always the critical fall height stated for the relevant product in its BS EN 1177 test report.

When does playground equipment need shock-absorbing surfacing?

Playground equipment with a free height of fall above 60 cm requires shock-absorbing surfacing under BS EN 1176. Where equipment involves forced movement, such as swings and slides, surfacing is required throughout the impact area regardless of the free height of fall. For low-level equipment, the requirement depends on both the free height of fall and the type of movement.

The free height of fall is the distance from the clearly intended body support to the impact surface below and must not exceed 3 m. For a platform, the body support is the platform surface; for a swing, the seat surface; and for a horizontal bar, the gripping surface. For climbing, the maximum grip height less 1 m applies. The critical fall height of the surfacing is determined by a series of drop tests to BS EN 1177 and must be at least equal to the equipment’s free height of fall.

Under BS EN 1176, grass and topsoil are acceptable up to a free height of fall of 100 cm, provided the surface is maintained, yielding and free from stones, roots, foundations and other hard objects. Once the ground is compacted, dried out or frozen, these conditions are no longer met. For equipment intended exclusively for domestic use, BS EN 71-8 applies instead of BS EN 1176, and shock-absorbing surfacing is required in a private garden as well.

Why do playground safety tiles sit more evenly on gravel grids than on grit?

Playground safety tiles sit more evenly and remain stable for longer on gravel grids than on a loose grit bed. The honeycomb cells hold the aggregate in place, with the material contained within each individual cell. It can neither move sideways under load nor be washed out during heavy rain, so the tiled surface remains stable and safe over the years.

In a loose grit bed, the particles are broadly the same size and lack the fine material that would fill the voids. Even after compaction, the grit remains mobile. This movement is irrelevant beneath a rigid concrete slab, but an elastic playground safety tile or patio tile made from rubber granules does not spread loads evenly through the substrate. Over time, the grit may be pushed towards the tile edges. The rubber tile then loses support in the centre and sinks there, while displaced grit accumulates beneath the edges and lifts them. This pattern of damage is known as dishing.

Gravel grids are also sold as grass grids, gravel cells or plastic honeycomb grids. They turn a loose grit bed into a stable sub-base. When filling the cells, the aggregate is levelled exactly to the top edge. The contained material stays in place under load and in rain, leaving the tiled surface stable and safe. Filled grids can support up to 400 t/m², while the whole area remains water-permeable. Where the ground is permeable, a gradient and drainage are usually unnecessary.

On load-bearing ground subject to low loads, it is sufficient to remove the topsoil and lay the grids on a thin levelling layer of grit. Less excavation is required than for a conventional construction method. A sub-base of compacted crushed stone is only needed where the ground has limited load-bearing capacity, where the construction needs to be frost-proof, or where the area must carry higher loads. This limited amount of work is an argument in favour of gravel grids.

How do I install rubber flooring on concrete, asphalt or tiled floors?

Rubber flooring tiles can be installed directly over concrete, screed, asphalt or tiled floors as a loose-laid covering, without an additional sub-base.

With no additional sub-base required, the substrate must still be load-bearing, clean and sufficiently level. Remove loose material, oil and other contamination before laying. Larger irregularities, depressions and changes in level must be levelled out so that the tiles lie stably and do not create obtrusive edges.

The starting point and laying direction depend on the shape of the area and the required pattern. In many cases, starting in the centre helps to align the pattern evenly and produce similar cuts at opposite edges. For other areas, a straight boundary may provide the appropriate starting point.

Lay the tiles according to the chosen layout and join them firmly. Depending on the product, this is done using puzzle joints, dovetail joints or separate connectors. Measure the edge tiles, cut them to fit and then insert them.

Bonding is generally not required. Small cut pieces, stair treads and very small areas may require bonding.

How do plastic connecting pins hold rubber tiles?

Plastic connecting pins hold rubber tiles and shaped units made from rubber granules in accurate grid alignment. These plastic dowels are a widely used connection method and work in a similar way to wooden dowels, extending several centimetres into each of two neighbouring tiles. In a half-bond installation, each tile connects to two tiles in the preceding row and two in the row behind. Across the pin axis, the pins prevent lateral movement; along the axis, however, the tiles remain movable and can drift apart.

To limit this movement, a tiled area generally requires edge restraint. A level adjoining grass sward can provide this restraint. Alternatively, the plastic connecting pins can be glued in place, or the tiles can be bonded to the substrate. The pins do not resist the natural shrinkage of the tiles, so joints can still open and become wider over time.

How should safety mats be installed correctly?

Correct installation of safety tiles and safety mats requires the substrate, connection system, fall area, fall height and drainage to be matched to the intended use. This applies to outdoor impact-absorbing surfacing in gardens as well as on public playgrounds. Beneath play equipment, the tested critical fall height of the selected product and build-up must at least match the equipment’s free height of fall. The required dimensions of the fall area depend on the individual item of play equipment.

On concrete or asphalt, safety mats and safety tiles can be installed directly. Rainwater passes through the water-permeable surfacing to the sub-base, from which it is directed by a gradient towards a free edge or an outlet.

On grass or soil, direct installation is not appropriate. A loose fill of sand, chippings or gravel is also unsuitable as a substrate because it shifts over time. Once the turf has been removed, plastic honeycomb panels are laid on a thin bedding layer of chippings and filled with chippings up to their upper edge. The safety mats or safety tiles are then laid over them. Rainwater passes through the complete build-up and can infiltrate into the ground.

For higher loads or unfavourable ground conditions, an appropriately designed sub-base of compacted frost-resistant aggregate is also required beneath the laying course. Further installation depends on the connection system.

For safety mats with puzzle interlocking, the interlocking edge of one mat is pressed from above into the edge of the adjacent mat already in place. This stable connection generally requires neither bonding to the substrate nor edge restraint.

Safety tiles with plug-in connectors are laid in a half-bond pattern. They require edge restraint to prevent lateral movement. On a bound sub-base, bonding may be specified instead of edge restraint, depending on the installation situation.

During installation, safety tiles should have a uniform temperature of no more than about 17 °C and should not be heated by direct sunlight. A rubber mallet helps to position the tiles, while a circular saw assists with cutting. Where the impact-absorbing surfacing ends within a paved area, a securely fixed transition ramp prevents trip hazards.

How do I remove limescale from rubber tiles with an EPDM surface?

Limescale, chalk efflorescence and stubborn dirt can be removed from rubber tiles with an EPDM surface using a mildly acidic cleaner. The biodegradable Sonett Toilet Cleaner Mint & Myrtle has proved effective for this purpose. Apply the cleaner evenly, leave it to work for 10 to 15 minutes, brush the surface carefully and then rinse thoroughly with clean water.

For routine cleaning, a neutral cleaner is sufficient. Sonett Orange Power Cleaner may be used at the dilution intended for floor cleaning. Larger indoor areas can be cleaned with a scrubber dryer fitted with a cylindrical brush; a single-disc machine is unsuitable.

Do not use strongly alkaline cleaners, abrasive cleaners or unauthorised solvent-based cleaning products. Test every new cleaning product first in an inconspicuous area. Acidic cleaners must not be allowed to dry on the surface.
