Dog Run Flooring FF "Sand beige"
- /
-
Ready to ship
from stock in 1-3 days - €46.80 / 4 Piece / m²
- (5.00 kg / Piece)
EAN: 4251469370838 | Item no.: 7083

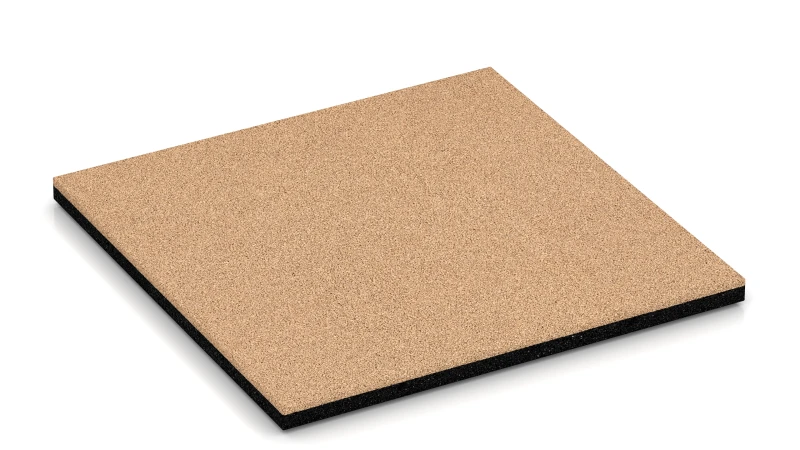

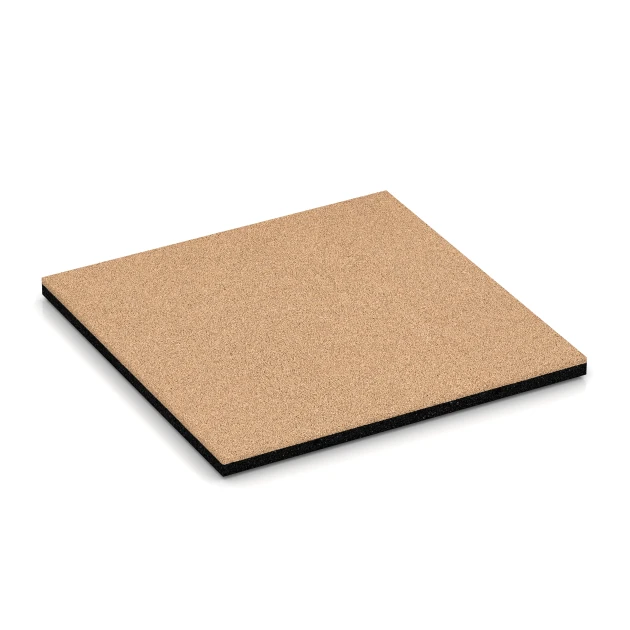

Dog Run Flooring Type FF consists of tiles made from rubber granules bonded with polyurethane. The tiles have bevelled edges and a grippy, slip-resistant surface. Plastic connecting pins join the tiles, while an edge restraint around the whole area keeps the surface together. This resilient, water-permeable flooring is suitable for outdoor runs and indoor areas. It also insulates against cold from the substrate.
How does the flooring feel for my dog?
A dog in the run can spend time in the fresh air even when no one has time for a walk. Whether the dog runs along the fence, plays with a ball or stretches out in the sun, its paws and claws get a good grip on the surface, even when it is wet. The flooring feels pleasantly resilient underfoot and is kind to paws. When the dog lies down, it is not lying in mud in wet weather or dust in dry weather.
How are the tiles made?
The tiles are made from recycled tyre rubber granules (ELT) bonded with polyurethane. Each tile has two layers. The top is a compacted layer of finer granules. The layer below is made from coarser granules, carries the load and cushions impacts. The edges are bevelled. The flooring does not rot or splinter, and frost does not damage it. New tiles may smell of rubber at first. The smell fades after a short time, particularly quickly outdoors.
Where can the flooring be used?
The flooring can be used for a run in the garden, a fenced area beside the house or a run at an animal rescue centre or dog boarding facility. It is suitable for outdoor areas, halls and other indoor spaces. Outdoors, it can remain in place throughout the year. Indoors, the substrate must tolerate moisture because water and urine pass through the tiles. A damaged tile can be replaced individually. If the area is altered, the tiles can be lifted and relaid elsewhere.
How are the tiles installed?
Plastic connecting pins sit in holes along the tile edges. They always connect tiles in neighbouring rows. The tiles are therefore laid in half bond, with each row offset by half a tile. This connects each tile to four others, with two in the row before and two in the row after. Every second row begins and ends with a half tile so that it finishes flush at both edges. A circular saw is best for making the cut. The whole area needs a firm edge restraint, such as kerbs, to prevent the tiles from moving apart. The tiles are not fixed to the substrate itself. The substrate must remain load-bearing and stable over time, and it must be largely level. Suitable examples include concrete, paving and asphalt. On lawn, soil or gravel, gravel grids filled with chippings form the base.
How is the run kept clean and dry?
Rainwater and urine pass through the tiles. On an impermeable substrate, water flows down the gradient through shallow drainage channels on the underside. On gravel grids, it soaks into the ground. This prevents puddles from forming and allows the surface to dry quickly after rain. A broom, garden hose or pressure washer is sufficient for cleaning. Areas where the dog regularly urinates should be rinsed more often with plenty of water to prevent odours from building up.
Discount
Product Highlights
Characteristics
Product Details – Material and Structure
Comparative values
Rubber tiles and rubber mats from WARCO are not harmful to health when used as intended. They are made from rubber granules bound with PU; the solvent-free PU binder cures fully during manufacture.
The rubber granules are predominantly recycled from end-of-life tyres (ELTs). The PAH content of ELT rubber granules may vary according to origin and batch; PAH means polycyclic aromatic hydrocarbons. Black ELT rubber granules contain carbon black, a fine industrial soot that gives the rubber its black colour. Surface abrasion may occur during use of rubber mats.
In two-layer versions, the wearing layer is made from newly manufactured EPDM, which is coloured throughout and free from harmful substances. The possible PAH variations associated with ELT rubber granules do not occur with EPDM. Versions with an EPDM wearing layer are particularly suitable for prolonged or intensive skin contact and for areas intended for babies. The relevant product description states whether a product has a two-layer construction.
Rubber tiles and rubber mats made from PU-bound rubber granules typically have a service life of around 10 to 15 years, although this can vary substantially with the conditions of use. Some surfaces remain in use for more than 20 years, while others require replacement after only a few years.
The type and intensity of loading determine service life. Friction causes surface wear, while high or sustained compressive loads can affect the material structure. Mechanical loading is generally lower in private settings than in commercial use. Weathering also affects service life, particularly UV radiation, temperature changes and frequent freeze-thaw cycles.
The type of granules influences ageing behaviour. An EPDM wearing layer is UV-resistant and, after an initial acclimatisation period, remains largely colour-stable. ELT granules with a pigmented binder become darker over time.
The data sheet for each WARCO product provides information on UV resistance, colour fastness and abrasion resistance, helping to select the appropriate covering. Correct installation in accordance with the installation guidelines on a level, load-bearing substrate also contributes to a long service life.
Outdoor rubber tiles made from polyurethane-bound rubber granules are frost-resistant and suitable for use throughout the winter. Their porous structure absorbs precipitation and allows it to pass downwards; water remaining in the pores has space to expand when it freezes, while the rubber granules and polyurethane binder remain elastic at sub-zero temperatures. The sub-base must also be constructed to withstand frost.
On bound sub-bases, water flows beneath and between the tiles in the direction of the fall towards the drainage system. On chippings or crushed stone, it drains vertically through the construction. If water collects beneath the tiles, a frost-susceptible sub-base may rise and then settle again after thawing. The tiles themselves remain unaffected, but the surface may become more uneven.
For winter maintenance, use a snow shovel with a smooth edge and avoid catching the tile edges. Salt used in normal quantities to melt ice does not harm the rubber granules.
Rubber tiles can be water-permeable at rates ranging from nearly zero to more than 1,100 litres per square metre per hour. Water permeability depends on the particle-size fraction of the rubber granules used and on the pressing pressure applied during manufacture. The tiles are made from PU-bound rubber granules and have an open-pored structure.
Within this porous structure, water does not pass through the rubber itself but through the voids between the bonded granules. The more tightly the granules are compacted, the less water a rubber tile allows through. At low pressing pressure, the irregularly shaped granules sit loosely beside one another, leaving interconnected pores and fine channels through which water flows vertically downwards. An accredited institute measured more than 1,100 litres per square metre per hour in accordance with BS EN 12616, even after four weeks of weathering.
The respective water permeability value is stated as a comparative value in the product description. Rubber tiles made under high pressing pressure have an almost void-free granule structure and allow hardly any water through. A newly laid area absorbs water more slowly during its first days than the measured value may suggest, because the granule surfaces initially resist wetting, much like a new rain jacket. After several days of use, the floor covering reaches its full water permeability; scrubbing it with a little washing-up liquid speeds up this process.
The test report can be submitted to building authorities as evidence of water permeability. How an area is classified depends on the overall system build-up: precipitation can drain through the floor covering into the ground only if the sub-base beneath the rubber tiles also absorbs water.
Before fitting rubber flooring indoors, the tiles should be cleaned, dried completely and aired. The substrate must be level, load-bearing, clean and dry.
New tiles made from rubber granules may carry residues of manufacturing release agents and fine rubber dust. Before installation, it is advisable to clean the tiles outdoors with warm water; a mildly acidic cleaner suitable for rubber and a scrubbing brush can assist with cleaning. A pressure washer may be used from a sufficient distance. The tiles must then dry completely.
If cleaning before installation is not possible, the residues can be removed after fitting by repeatedly damp-mopping with warm water. New tiles have a characteristic odour which decreases over time; airing them outdoors for several days and regularly ventilating the room during the first few weeks will help it dissipate more quickly.
Before installation, the tiles should have reached room temperature. The installation instructions for the relevant product and installation system must be followed.
Installation of rubber tiles requires a load-bearing substrate designed to drain water. The tiles are water-permeable, so rainwater passing through them must infiltrate into the substrate or, alternatively, be discharged by a fall.
In central Europe, the suitable installation temperature is between 5 and 17 °C. Direct sunlight should be avoided, as it can cause tiles to heat up to differing degrees; throughout installation, all tiles should have an even temperature. Rain during installation does not harm the tiles, but soaked tiles must dry completely before installation.
General installation instructions must be followed, along with the requirements for the relevant product and installation system.
New rubber tiles may carry harmless release-agent residues from manufacture. Weathering washes these residues away; if required, they can be removed with water and a brush or with a pressure washer. The typical rubber smell of new tiles is harmless and reduces noticeably after a short time outdoors.
For most rubber tiles to stay level on stone chippings or gravel in the long term, the loose material must first be stabilised with plastic honeycomb grids. These are sold under various names, including gravel grids, grass grids and honeycomb gravel grids. In each case, the cells hold the chippings in place and stop them shifting.
Chippings are generally of a similar size, with no fine material to fill the gaps between them. They cannot therefore be compacted effectively and remain prone to movement. Walk across chippings or gravel and you can feel them shift underfoot and hear them crunch. Beneath a rigid concrete slab, that movement hardly matters. Beneath a rubber tile 2 to 5 cm thick, however, hollows develop in the bed and show through on the tile surface.
First, remove the topsoil and level the ground to the required formation level. Spread a thin layer of chippings over the prepared ground and screed it carefully to a flat finish. Lay the gravel grids on top and fill the cells flush with their upper edges. Use crushed chippings rather than rounded gravel, as their angular particles interlock much better. Then lay the rubber tiles on this bed. Where the ground has poor load-bearing capacity, or where the build-up needs to withstand frost, install and compact a sub-base beneath the laying course of chippings.
Certain WARCO ranges with a flat underside are approved for installation directly on a bed of chippings, without a gravel grid. These ranges always require a sub-base of compacted crushed stone (MOT Type 1). Over this, spread a 2 to 3 cm laying course of crushed sand and chippings graded 0/5, then screed it level and compact it with a plate compactor. Unlike chippings alone, this mix contains fine sand, which allows it to firm up.
The laying course must remain within that thickness range. Below 2 cm, it cannot be screeded and compacted properly; above 3 cm, too much loose material remains beneath the patio tiles. After compaction, check the surface with a three-metre straightedge: the gap beneath it should be no more than 0.5 cm anywhere.
Rubber flooring tiles can be installed directly over concrete, screed, asphalt or tiled floors as a loose-laid covering, without an additional sub-base.
With no additional sub-base required, the substrate must still be load-bearing, clean and sufficiently level. Remove loose material, oil and other contamination before laying. Larger irregularities, depressions and changes in level must be levelled out so that the tiles lie stably and do not create obtrusive edges.
The starting point and laying direction depend on the shape of the area and the required pattern. In many cases, starting in the centre helps to align the pattern evenly and produce similar cuts at opposite edges. For other areas, a straight boundary may provide the appropriate starting point.
Lay the tiles according to the chosen layout and join them firmly. Depending on the product, this is done using puzzle joints, dovetail joints or separate connectors. Measure the edge tiles, cut them to fit and then insert them.
Bonding is generally not required. Small cut pieces, stair treads and very small areas may require bonding.
Plastic connectors, also known as connector pins or plastic connecting pins, are cylindrical plastic pins with a profiled surface. They fit into factory drilled holes along the sides of the tiles and connect rubber tiles in adjacent rows. Perpendicular to the connector axis, they prevent the tiles from shifting relative to one another. Along the connector axis, the tiles remain free to move.
The tiles are laid row by row in half bond. The plastic connectors are first inserted into the holes along one side of the tile being positioned. With the connectors leading, this tile is then pressed into the holes in the two adjoining tiles in the row already laid. The connectors are designed to fit tightly, so noticeable force during insertion and when pressing the tiles together is normal. If required, the connectors may be glued in place, which prevents the tiles from drifting apart along the connector axis.
Algae and moss do not generally establish themselves on products made from rubber granules. Rubber provides no nutrients and offers no basis for roots to take hold.
If sand, potting compost or other organic debris accumulates on the surface, growth may develop in these deposits. To prevent this, products made from rubber granules should be cleaned regularly, as should other floor coverings.
Outdoor rubber tiles should be cleared of leaves, soil and sand regularly.
Loose dirt can be swept away with a rubber broom or rinsed off with a hose. Rain also washes much of the dust and pollen away through water-permeable tiles.
Regular maintenance reduces the work required for more thorough cleaning.
For thorough outdoor cleaning, a pressure washer is suitable. The water jet loosens dirt from the textured surface and removes more persistent residues such as dog mess or food residue.
Where clean water is not sufficient, use either a neutral cleaner suitable for rubber or a mildly acidic cleaner. A specialist rubber cleaner is not required. Biodegradable Sonett WC Cleaner Mint is particularly suitable and has a pH value of around 5 to 6.
Apply the cleaner evenly, either neat or slightly diluted. After 10 to 15 minutes, work it in with a brush, then rinse the area thoroughly with clean water.
When brushing, use moderate pressure only. Excessive pressure can loosen granules from the bonded matrix.
Strongly alkaline cleaners, abrasive products and solvent-based cleaning products are unsuitable, as they can attack the surface of the rubber tiles.
The appropriate cleaning method for rubber tiles within buildings depends on the area in which they are used and the surface texture.
In private homes, rubber brooms, vacuum cleaners or mops are usually sufficient for regular maintenance. A neutral cleaner suitable for rubber should be used. A mildly acidic cleaner may be used for mineral deposits.
Water-permeable rubber floor coverings must not be flooded where the substrate does not provide suitable drainage.
For larger or commercial areas, a scrubber dryer with a cylindrical brush is recommended. The brush type and contact pressure of the scrubber dryer must be matched to the floor covering.
Within buildings, a pressure washer is only suitable for stables or appropriately equipped halls where adequate drainage is available. It can also remove stubborn dirt from the textured tile surface.
