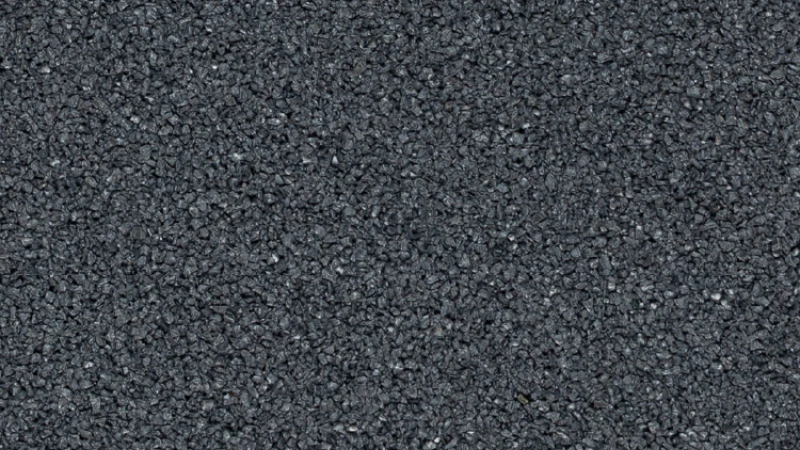

Balcony floor tile UZ "Slate grey"

€9.80 / Piece
  • plus shipping costs

    /
  • Ready to ship

    from stock in 1-3 days
  • €39.20 / 4 Piece / m²
  • (4.75 kg /  Piece)

EAN: 4251469364127 | Item no.: 6412

The balcony floor tile is a durable floor covering made from PU-bonded rubber granulate in a practical square format. Its finely textured surface offers reliable grip, while the integrated puzzle interlocking on all edges ensures the tiles fit securely together. Thanks to the water-permeable porous structure, rainwater drains away following the slope. This supports year-round use in changing weather conditions.

For new builds and renovation

These balcony tiles can be laid directly onto a wide range of stable substrates, including roofing felt, flat roof membranes, bituminous sheeting, tiles, concrete or timber. No additional substructure is required, which simplifies installation and reduces build-up height. Minor unevenness in the base can be levelled easily using offcuts of roofing felt, ensuring a consistent surface without extensive preparation work.

Easy installation

The integrated puzzle interlocking system allows the tiles to be joined quickly and precisely without adhesives or mechanical fixing. Each tile can be lifted again if required, making adjustments straightforward. Individual elements can also be replaced without dismantling the entire area. On-site cutting is possible with standard tools such as a jigsaw, circular saw or a sharp knife, enabling accurate fitting around edges and fixtures.

Reliable water drainage

The porous structure of the tiles is water-permeable. Rainwater flows partly over the surface and partly through the tiles and their joints, following the slope to the balcony floor drain. The underside of each tile is flat. The tile rests on the substrate across its entire area. To prevent standing water, the balcony needs an adequate slope.

Pleasant surface

The slip-resistant surface is comfortable underfoot and suitable for barefoot use. It provides a secure footing for children and pets and offers impact-absorbing properties that improve walking comfort. At the same time, the tiles support typical balcony furniture and planters without restriction.

Maintenance-free

The balcony covering requires no special upkeep. Dirt can be removed easily by sweeping, wiping or rinsing with water. The durable construction ensures a long service life, making this a practical and economical choice for everyday outdoor use.

Selected variant 50 x 50 x 2 cm | 0,25 m²
Product type UZ (This product is made from cleaned ELT granules with a fine to medium grain size, bound with a polyurethane binder. ELT stands for "End of Life Tyres" and refers to rubber produced from recycled tyres. The material consists of a blend of Natural Rubber (NR) and Styrene-Butadiene Rubber (SBR). Black and anthracite-coloured products use a clear binder, while coloured variants are manufactured with a pigmented binder that coats the black granules. The surface has a finely textured matt finish.)
Price and discount
0 m²

Product Highlights

Characteristics

UV-stabilised

ELT granules are UV-stabilised. Some coating shades may change slightly outdoors.

Harmful substance limits met

Meets EU limits for harmful substances. Initial rubber odour diminishes.

Indoor and outdoor use

Frost-resistant, suitable for indoor and outdoor use.

Efl

Normally flammable.

Product Details – Material and Structure

Comparative values

What balcony flooring is suitable for outdoor use?

Suitable balcony flooring for outdoor use must be weather-resistant, frost-proof and water-permeable. Balcony tiles made from rubber granules meet these requirements and have a slip-resistant, elastic surface that is comfortable under bare feet.

Wood, artificial grass, ceramic and natural stone can also be used as balcony flooring. Wood requires regular maintenance, while artificial grass is very labour-intensive to clean. Ceramic and natural stone are durable materials, but their installation is more involved. If water penetrates an improperly installed build-up, frost can damage rigid tiles, joints and bonding.

Balcony tiles made from rubber granules are not damaged by frost. Rainwater and meltwater drain across the entire surface through the open-pored tiles and then into drainage channels on the underside, before running off in the direction of the fall. Their elasticity and water permeability prevent frost damage such as cracking, bursting or breaking.

The rubber tiles are placed on the existing substrate without being fixed to it and, depending on the system, connected using puzzle joints or connectors. The substrate must be load-bearing and sufficiently level, with an intact waterproofing layer and a fall towards the outlet.

From a thickness of 1.8 cm, the tiles are shock-absorbing and reduce the transmission of impact sound. They are easy to maintain, available in many colours, and can be lifted and individually replaced when required.

Should I tile my balcony?

Tiling a balcony is appropriate only if the entire balcony construction is suitable for outdoor use, frost-resistant and reliably drained.

Tiles do not provide waterproofing. Water enters the construction through joints, junctions and damaged areas; if it cannot drain away, it freezes during periods of frost and expands. In a construction that is not frost-resistant, repeated freezing and thawing leads to cracked joints, cracked tiles, spalling and adhesive bonds coming loose.

Frost-resistant tiles, suitable installation materials, intact waterproofing and adequate falls are essential. Balcony slabs made from PU-bound rubber granules are an alternative to tiled finishes and are easier to lay. Rainwater drains across the full surface through the porous tiles.

These rubber granule coverings are elastic and water-permeable. Frost damage caused by bursting, breaking or spalling does not occur. The tiles are loose-laid and, depending on the system, connected using puzzle joints or connectors. The balcony waterproofing and the required falls remain part of the balcony construction.

When does a balcony need refurbishing?

A balcony needs refurbishing when damage affects its waterproofing, load-bearing structure or safety. Cosmetic wear alone does not call for immediate refurbishment.

The warning signs depend on how the balcony is built. On a concrete balcony, look for continuous cracks, spalling and exposed or rusting reinforcement. On a timber balcony, look for structural members that give when pressed, signs of rot or discolouration, fungal growth and loose joints. On a metal balcony, look for heavy corrosion, distortion and defects in welds, bolted connections or fixings where the structure meets the building.

Some signs apply to balconies of any construction: damp, open joints, waterproofing that no longer keeps water out, standing water, loose floor coverings and an unstable balustrade. Damage to the load-bearing structure, its connections to the building or the balustrade directly affects the balcony’s stability and safety at its edge, and requires a professional survey. Work on historic balconies also requires experience of their particular construction and of the requirements that apply to listed buildings.

Before renewing the balcony surface, check the load-bearing structure, substrate, falls and drainage. Then carry out any necessary repairs and restore the waterproofing with a suitable elastic waterproofing system such as ALLESDICHT.

WARCO balcony tiles made from rubber granules with a PU binder are suitable as the visible wearing layer: they are weather-resistant and slip-resistant. On a suitable, sound substrate with adequate drainage, they can be laid loose rather than bonded to the substrate throughout. You can therefore also install them yourself.

How much does balcony renovation cost per square metre?

Balcony renovation costs range from €50 to over €1,000 (about £43 to over £850) per m², depending on the scope of the work. A reliable estimate can be prepared once the balcony's size, construction, condition and proposed materials are known. Replacing only the floor covering on a sound, structurally adequate substrate often costs around €50 to €100 (about £43 to £85) per m²; new waterproofing with properly formed junctions is typically €150 to €400 (about £130 to £340) per m². A full renovation involving concrete repair and a new build-up can reach €1,000 or more (about £850 or more) per m².

The work required depends on the existing condition. It may include removing and disposing of the existing floor covering, exposing and inspecting the supporting structure, repairing damaged concrete and corroded reinforcement, forming or correcting a fall of at least 1.5%, installing waterproofing at door and wall junctions, addressing the thermal bridge created by a cantilevered slab, replacing the balustrade so that it meets guarding requirements, laying a new floor covering, and finishing or cladding the walls. The largest single cost often only becomes apparent once the old floor covering has been removed.

On cantilevered reinforced-concrete slabs, water can enter through cracks and defective junctions. Carbonation and freeze-thaw cycles can then lead to reinforcement corrosion and concrete spalling. Exposed reinforcement must be cleaned of rust and passivated, and the concrete reprofiled, before waterproofing can be applied. Where there are cracks, visible damage to the reinforcement or a planned increase in build-up height, the balcony should be assessed beforehand by a specialist contractor or structural engineer.

The balcony's performance also depends on an adequate fall, effective drainage and suitable upstand heights. Waterproofing should be turned up at door thresholds and adjoining walls in accordance with DIN 18531, and should be crack-bridging so that fine cracks in the concrete beneath cannot propagate into it. The benefit of additional insulation depends on how the balcony is connected to the building. Freestanding timber or metal balconies on their own supports are thermally separate from the building and do not require insulation; a continuous concrete slab forms a thermal bridge and can usually only be thermally broken as part of more extensive building work.

The choice of floor covering affects both the work involved and later maintenance. Ceramic tiles can spall in frost, timber needs regular maintenance and may rot, and WPC can become very hot and distort. WARCO rubber tiles made from PU-bound rubber granules are weather-resistant and suitable as a balcony covering; they are free-draining and can be laid on the prepared balcony without adhesive.

The total cost includes the materials, installation, disposal, any concrete repair and future maintenance. Considered together, these items give a reliable basis for long-term planning.

Do I need a ramp wedge as perimeter edging for a balcony or terrace?

A ramp wedge is needed as perimeter edging for a balcony or terrace only where there is a difference in level between surfaces. It is not needed for edge restraint alone.

That edge restraint is provided on balconies and terraces by existing structural boundaries such as walls and balustrades, which contain the floor covering. A difference in level may occur at a doorway threshold; in that case, the ramp wedge forms a sloping, walkable transition ramp.

How do I install rubber flooring on concrete, asphalt or tiled floors?

Rubber flooring tiles can be installed directly over concrete, screed, asphalt or tiled floors as a loose-laid covering, without an additional sub-base.

With no additional sub-base required, the substrate must still be load-bearing, clean and sufficiently level. Remove loose material, oil and other contamination before laying. Larger irregularities, depressions and changes in level must be levelled out so that the tiles lie stably and do not create obtrusive edges.

The starting point and laying direction depend on the shape of the area and the required pattern. In many cases, starting in the centre helps to align the pattern evenly and produce similar cuts at opposite edges. For other areas, a straight boundary may provide the appropriate starting point.

Lay the tiles according to the chosen layout and join them firmly. Depending on the product, this is done using puzzle joints, dovetail joints or separate connectors. Measure the edge tiles, cut them to fit and then insert them.

Bonding is generally not required. Small cut pieces, stair treads and very small areas may require bonding.

Can rubber tiles be laid over timber floorboards, parquet, laminate or WPC decking?

Rubber tiles can be laid over level, load-bearing timber floorboards, parquet flooring, laminate flooring and WPC decking.

The tiles are laid loose on the existing substrate, without adhesive or screws. Depending on the range, they are joined either by interlocking puzzle edges or by a system of plastic connectors. The covering can later be lifted without altering the existing construction.

For indoor use, the rubber covering protects parquet and laminate flooring from indentations and mechanical damage. The rubber covering also provides protection during fitness training, events, dog sports and construction work. Depending on the version, the covering improves slip resistance and absorbs impacts.

A separation layer is not normally required. Where water or other liquids may reach the covering, a waterproof, vapour-permeable separation layer protects the timber floor. Absorbent protective layers are not suitable for permanent installation because absorbed moisture dries only with difficulty beneath the covering.

For weather-exposed timber floorboards and WPC decking, both the substructure and the individual boards must be load-bearing. Damaged, weathered or distorted components must be repaired or replaced before installation. Gaps between the boards do not affect installation.

Depending on their thickness, elastic rubber tiles can bridge individual localised openings of around 2 to 3 cm. Rainwater passes through water-permeable tiles and follows the existing fall across the boards to the open gaps.

How do I lay patio tiles on a bitumen membrane or roofing felt?

Patio tiles made from PU-bound rubber granules are loose laid on a bitumen membrane, roofing felt or flat-roof membranes: they are simply placed in position, without adhesive or screws. This keeps the waterproofing on a balcony, terrace, roof terrace, flat roof or carport intact and allows individual tiles to be lifted at any time. Damaged waterproofing must be repaired before installation.

For plastic flat-roof membranes, it must be established before installation whether they contain plasticiser; the membrane manufacturer or a roofing contractor can provide this information. Roofing felt and bitumen membranes contain no plasticiser, so the tiles may rest directly on them; EPDM flat-roof membranes are also plasticiser-free. PVC or FPO plastic membranes can contain plasticiser, which may migrate into the rubber tiles on direct contact and cause the membrane to become brittle over time. Where a plastic membrane contains plasticiser, a thin separation layer of polyester or glass fibres is placed between the membrane and the rubber-granule covering. Plasticiser migration does not harm the rubber tiles.

The water-permeable rubber-granule covering allows rainwater to pass through the tiles onto the waterproofing, where it follows the existing fall to the outlet. On most ranges, drainage channels on the underside of the tiles carry the water onwards. A fall of 1 to 2 % has proved effective. Before installation, check the waterproofing for irregularities or depressions where water may collect, and level these areas with accurately cut pieces of roofing felt during installation.

How does the jigsaw interlock between rubber tiles work?

The jigsaw interlock between rubber tiles is formed by alternating projections and matching recesses along each tile edge: the projections on one tile engage with the recesses in the adjoining tile, creating an edge profile similar to a jigsaw. Depending on the range, the projections are dovetail-shaped or rounded. In both cases, the head is wider than the neck, and the profile extends through the full tile thickness.

To lay the tiles, each tile is pressed down from above into the jigsaw interlock of the adjoining tiles already in place. The wider head prevents the tiles from being pulled apart across the surface; the interlock can be released only by lifting a tile vertically and holds the laid tiles together through their full thickness.

Where all four tile edges carry the same profile, the rubber tiles can be placed together from any side. Otherwise, the laying direction is specified by the profile. Bonding and perimeter edging are generally not required.

Does an impermeable sub-base need to be laid to a fall?

An impermeable sub-base that is regularly exposed to water requires a minimum fall of 1.5% towards drainage. This applies in external areas such as terraces, balconies and paths, as well as in internal areas including garages and swimming pools.

In this context, waterproof and impermeable mean the same; the technical term for this layer is an impermeable sub-base. The fall allows water to drain continuously to adequately sized drainage outlets or into an infiltration area.

Where standing water or puddling occurs repeatedly, the fall should be checked and corrected where necessary. Standing water can lead to building damage.

How do I lay patio tiles around a drain or drainage channel?

Installation of patio slabs around a floor drain or drainage channel can be carried out in two ways.

The floor drain or drainage channel may remain open, with a drainage grate set flush into the patio slab surface. Alternatively, patio slabs can be laid over an existing load-bearing grating.

Where patio slabs cover the opening, the grating beneath carries the slabs. The slabs must not span the opening without adequate support. Rainwater passes through the water-permeable patio slabs and, via the drainage channels on the profiled underside, to the floor drain or drainage channel.

Whether the remaining flow area and inlet area are sufficient depends on the area to be drained, the amount of rainfall, the fall and the capacity of the drain. Additional holes in the patio slab can improve water entry directly above the grating; drill these with a wood bit. The patio slab must remain removable for inspection and cleaning, and the grating beneath must also be removable.

If the drainage capacity beneath the patio slabs is insufficient, the floor drain or drainage channel remains open. The patio slabs are then cut to fit around the opening. An exposed drainage grate is flush with the patio slab surface and allows water to enter the drain directly.

How can small irregularities in bitumen roof waterproofing be levelled?

Installation of rubber tiles over roof waterproofing can include levelling small local irregularities using closely fitted pieces of roofing felt.

After rainfall, areas of standing water can be identified. The depressions are filled with one or more pieces of roofing felt laid loosely on top of one another.

A long straightedge or straight metal rail can be used to check whether the depressions have been filled sufficiently. The surface does not need to be completely level. The important points are that as little water as possible remains, the existing fall is retained and the rubber tiles remain stable.

Bonding is not required where the pieces of roofing felt are fully covered by rubber tiles. The rubber tiles laid over them keep the pieces in position.

This method is suitable only for isolated depressions. Inadequate falls, larger deformations and damage to the waterproofing must be rectified professionally.
